The Pitchridge is part of Glazing Vision’s roof window range and is a fixed product comprising two panes joined at the ridge using back-to-back angles and silicone seal.

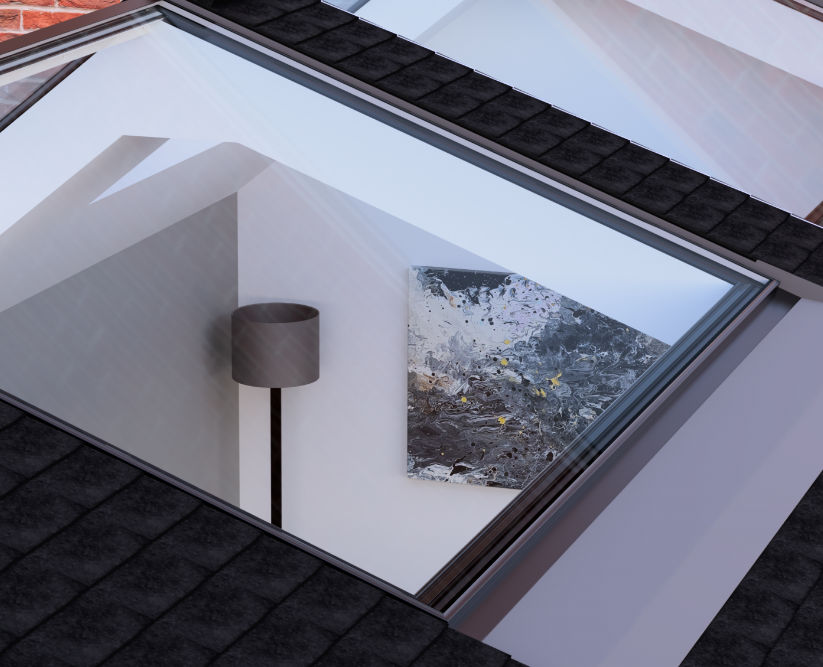

The Pitchridge is a fixed roof window designed to provide maximum daylight with minimum visible internal structure. Supplied in either portrait or landscape formats, it is designed to be installed in-plane on pitched roof applications.
The product is robust and long-lasting, boasting excellent thermal performance and air tightness, and there are a variety of optional extras such as special colour and easy clean coating.
– Minimum framework
– Maximum daylight
– Sky only views
– No internally visible framework
– Robust and long-lasting
A wide variety of glazing specifications are available for this product. Your technical sales advisor will be happy to answer any questions regarding specific glass specifications or glazing performance requirements. Otherwise, quotes include suitable and cost effective glazing proposals.
The aluminium frame of the product employs a dual hardness EPDM insulating gasket to thermally isolate the frame from the interior of the building. Structural integrity is assured through the use of finite element analysis (FEA) and testing.
– Supplied in either landscape or portrait orientations.
– Qualicoat approved polyester powder coated aluminium frame combined with either double or triple glazing.
– Easy Clean Coating
– Special Colour
– Flashing Kit
U-values are calculated for each product and will be supplied in our quote. Further information and specific performance details can be obtained from your technical sales advisor. This product is sealed to the upstand using butyl and silicone and fixed in place with structural fixings which are concealed with internal finishes leaving a sleek external finish.
The product has been thoroughly tested and is UKCA and CE marked in accordance with EN 14351-1:2006+A2:2016.
For more information, including specification details and how to request a CPD, click here.
To read about a Glazing Vision Californian case study, click here.
